Offline installation

Minimum system requirements

Passwork is not demanding on system resources, and the required number of servers depends on the number of active users, the volume of stored data, and the system's fault tolerance requirements.

Please review the full system requirements.

Preparing environment for offline installation

Obtaining components for Passwork

Before installing Passwork, you need to obtain the components and module, then use the Install-Passwork -Method offline function, which will perform the installation.

Download the following components and transfer them to the Windows Server:

Obtaining Passwork

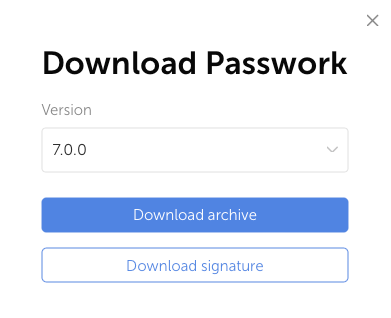

Go to Passwork Customer Portal and download the latest available version of Passwork with a digital signature:

Searching password by browser extension

To verify the digital signature, you also need the Passwork public key public-key.pem, ways to obtain it:

Manually
  • Open URL;
  • Copy all the contents;
  • Paste into a file and save the content with the name — public-key.pem.
Automatically (PowerShell)
(New-Object System.Net.WebClient).DownloadFile("https://passwork.pro/public-key", "$PWD\public-key.pem")

Preparing and starting installation

Open PowerShell as "Administrator":

Using the Start context menu
  1. Right-click on the Start icon in the lower-left corner of the screen.
  2. Select "Windows PowerShell (Administrator)" from the context menu.
Using the Start menu
  1. Left-click on the Start icon in the lower-left corner of the screen.
  2. Type powershell
  3. Open PowerShell as "Administrator" by pressing Ctrl + Shift + Enter

Unpack the PowerShell module into the default directory:

# Get the location of PowerShell modules
$windowsModulePaths = $env:PSModulePath -split ";" | Where-Object { $_ -like "C:\Windows*" }

# Unpack the PowerShell module into the directory
Expand-Archive `
-Path "$pwd\PassworkModule.zip" `
-DestinationPath $windowsModulePaths -Force

Create a directory for components and archives:

if (-not (Test-Path "$pwd\passwork_component" -PathType Container)) {
New-Item -Path "$pwd\passwork_component" -ItemType Directory
Write-Host "Directory successfully created" -ForegroundColor Green
} else {
Write-Host "Directory already exists"
}

Move the components and archives into passwork_component. The file structure should look like this:

$pwd\passwork_component\
database_tools_latest.zip
iis_package_latest.zip
mongodb_database_latest.msi
php_latest.zip
Passwork-xxxxxx.zip
xxxxxx.sig
public-key.pem
sign_check.php

Installation

Run the offline installation of Passwork:

Install-Passwork -Method offline
warning

By default, the script verifies the archive's digital signature using the provided public key. If the signature is invalid or missing, the update will be aborted.

If you trust the archive source, you can skip the signature verification:

Install-Passwork -Method offline -ignoreSignatureCheck
Actions performed by the function
  • Checking the operating system version
  • Preparing and installing MongoDB
  • Checking for administration utilities
  • Installing administration utilities
  • Preparing the Passwork code archive
  • Verifying the PHP archive
  • Configuring PHP
  • Checking and installing IIS with additional extensions
  • Verifying the archive using digital signature
  • Unpacking Passwork code
  • Configuring the web server with creating the Passwork website
  • Configuring the Passwork website in conjunction with PHP

The script will check user permissions and perform installation and configuration of components. In case of errors, PowerShell will display error messages:

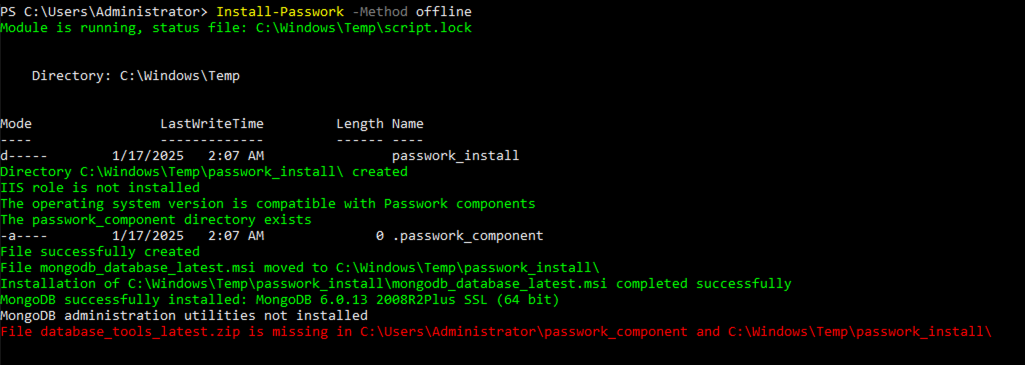

Example of receiving an error during execution

Upon completion, it will display the address to connect to Passwork via a web browser. This is what a successful installation looks like:

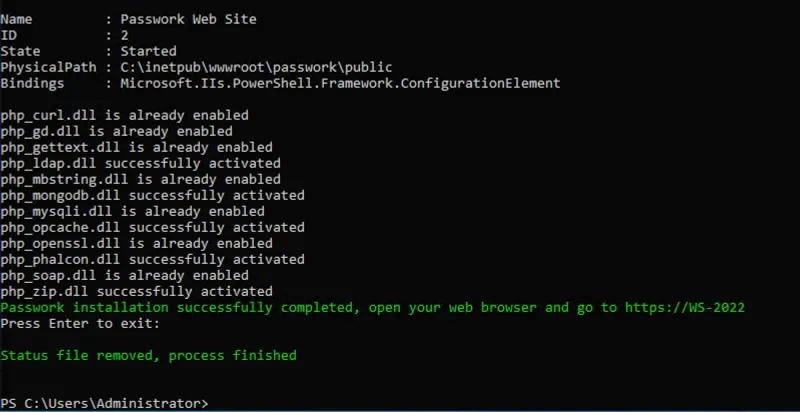

Example of successful installation

Installation wizard

After installation and configuration, Passwork will be available at https://your_servername

danger

By default, Passwork uses a self-signed certificate, which is automatically generated during installation, so the first time you open the page, you will see a message that the browser does not trust the site's certificate.

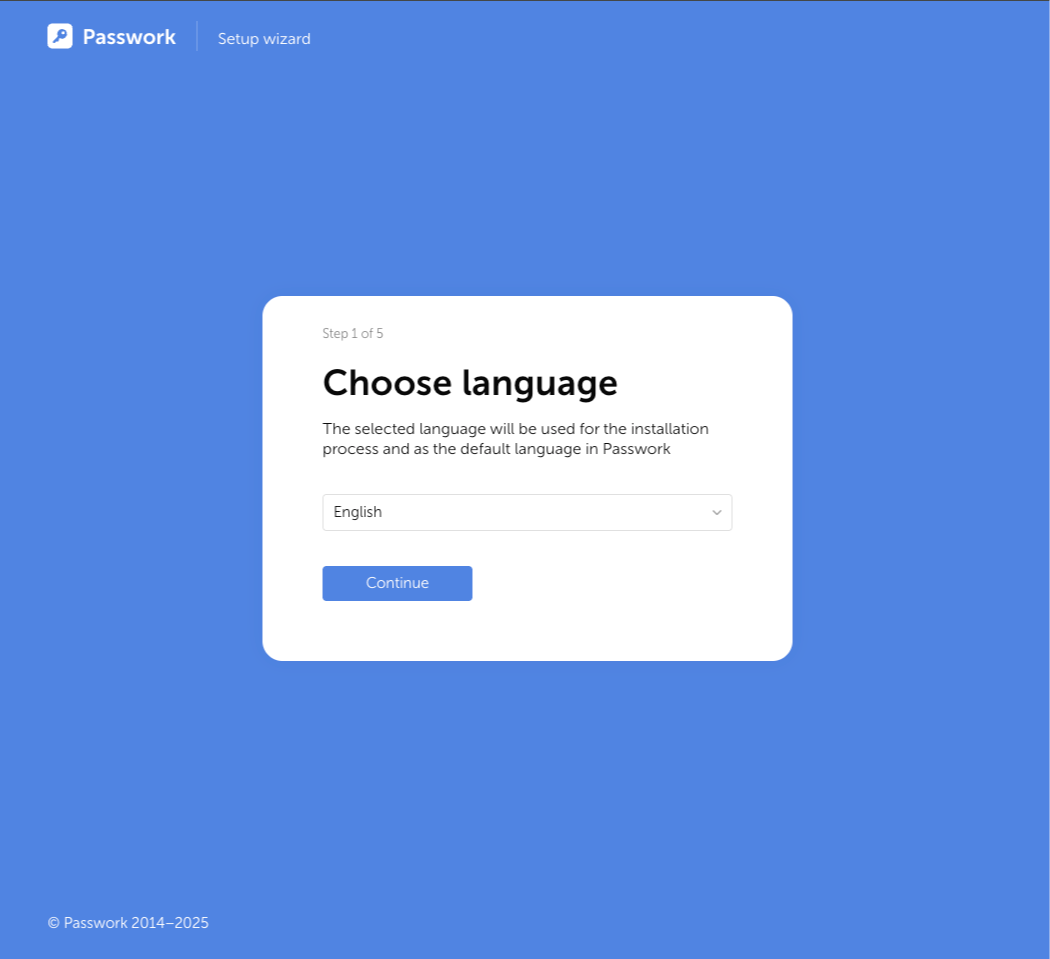

Choose language

At the first step, the system will prompt you to select the interface language:

Choose language

Server settings checklist

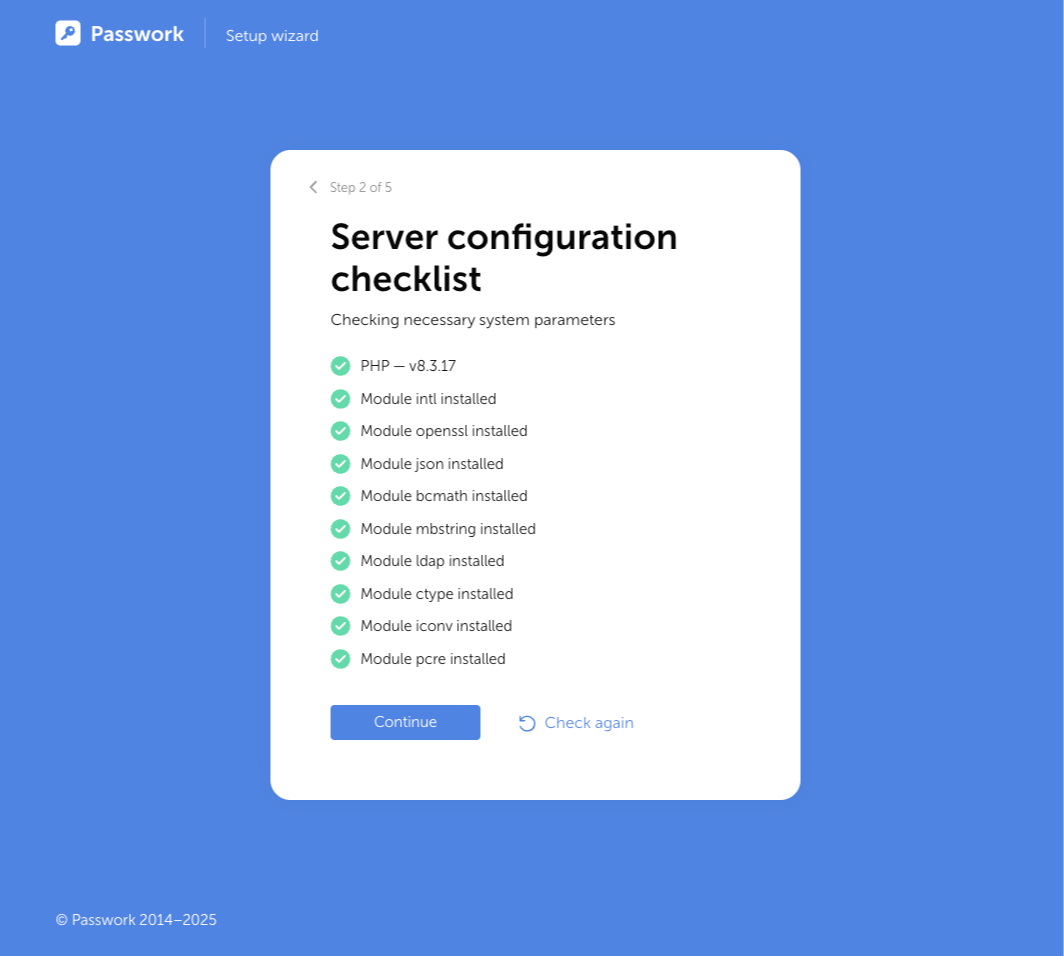

The checklist will show whether all components are installed on the server:

Checking component installation

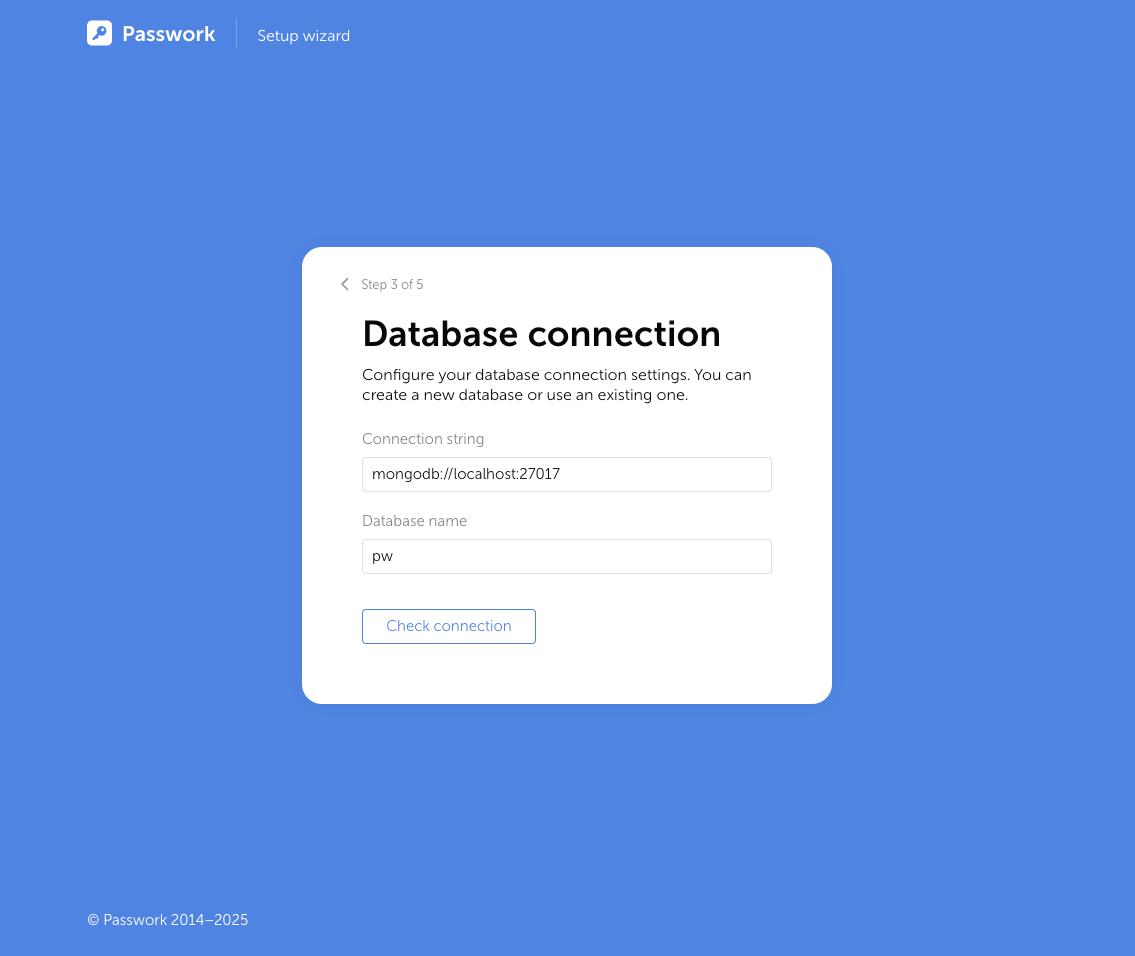

Database connection

Change the MongoDB connection to the address — mongodb://localhost:27017

Database connection

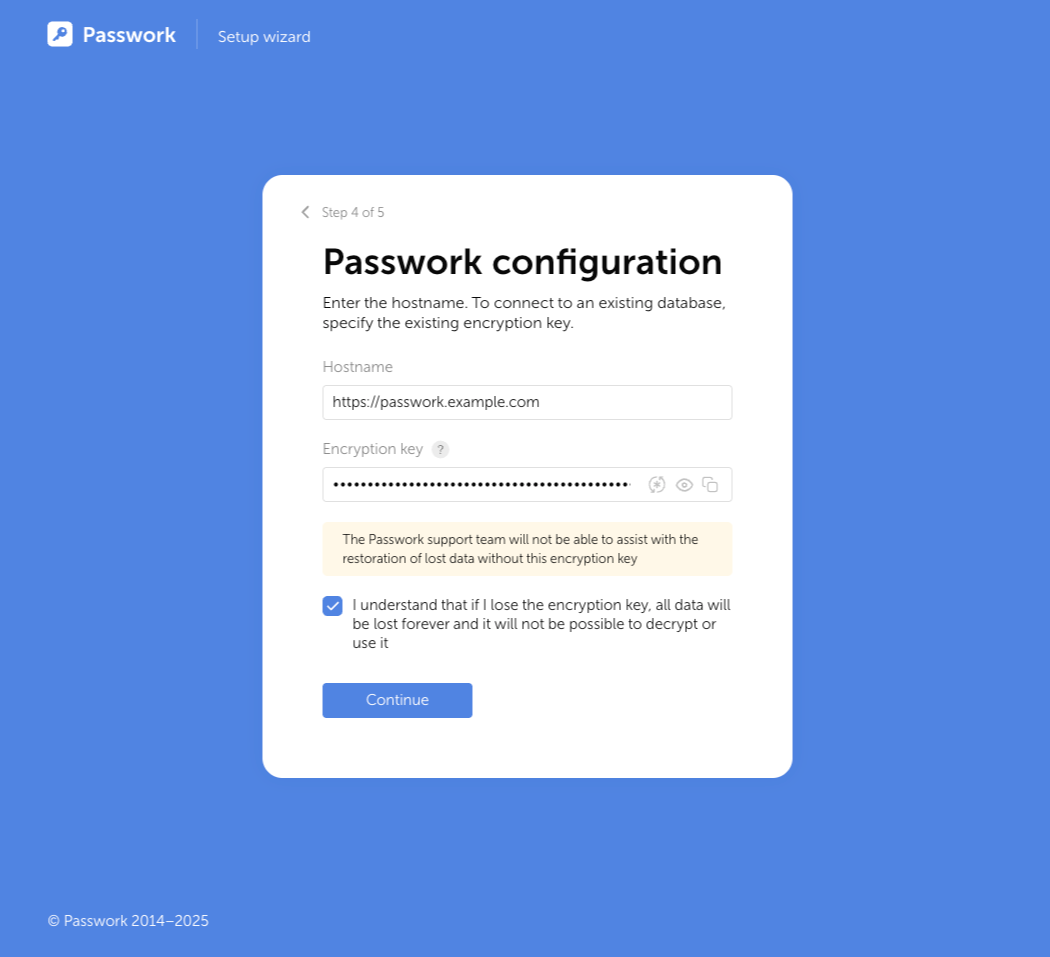

Configuring Passwork

Passwork will generate a new key for server encryption. If connecting Passwork to an existing database, specify the encryption key used:

danger

Please use the key generated by Passwork. Using keys generated by third-party tools may cause errors.

Generating database encryption key

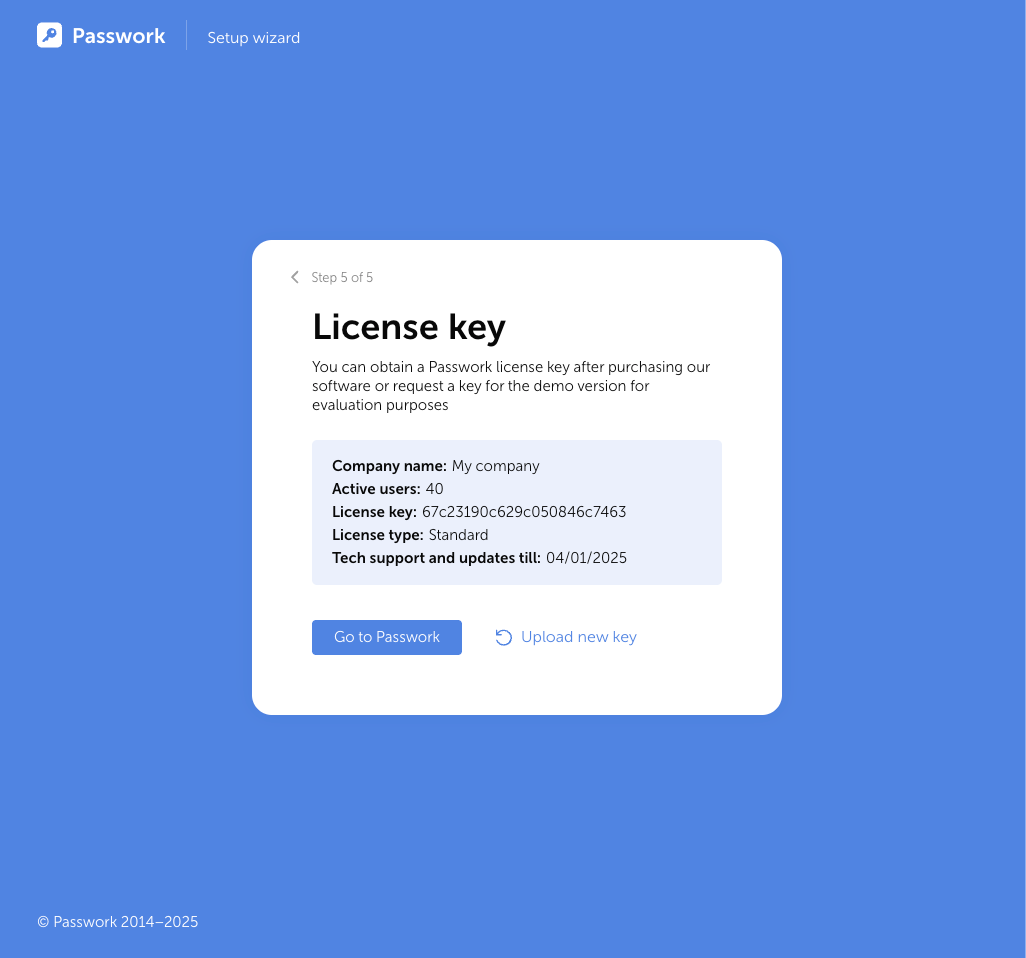

License key

The license key can be downloaded from the Passwork Customer Portal:

Downloading Passwork license key

SSL certificate configuration

By default, Passwork generates a self-signed certificate. After installation, you can switch to using full SSL certificates.

Using your own certificate

  • For certificates issued by a trusted issuer;
  • For certificates issued by your organization's domain certification authorities.

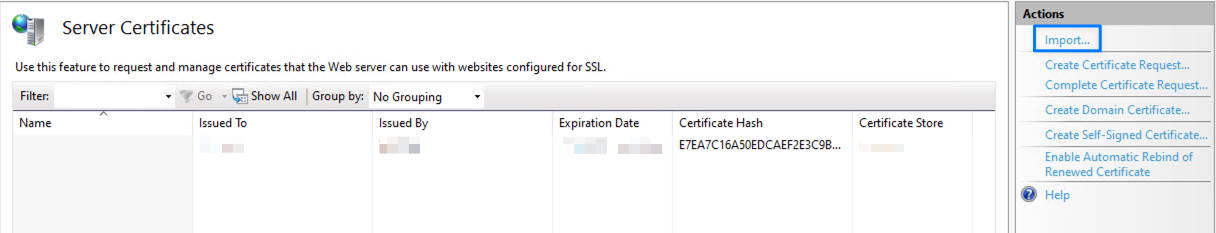

Open Server ManagerToolsIIS ManagerServer Certificates and click Import:

Example of importing a certificate for the website

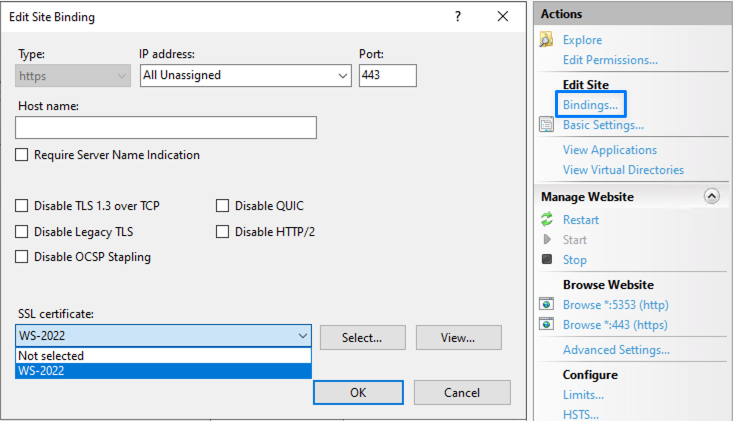

After importing, go to the Passwork website, open "Bindings" and select the imported web certificate for the HTTPS protocol:

Changing from self-signed certificate to imported

Configuring Background tasks

Background tasks are tasks that run on a scheduler in the background. Example of configuring background tasks.

danger

Background tasks are mandatory for the correct operation of some Passwork functionalities, for example:

  • LDAP operations;
  • Sending email notifications;
  • Loading favicons;
  • Cleaning the session collection in the Passwork database.
