Windows Server

info

Instructions for installing Passwork on the OS:

• Windows Server 2016
• Windows Server 2019
• Windows Server 2022

1. Minimum system requirements

Passwork is not demanding on system resources, and the required number of servers depends on the number of active users, the volume of stored data, and the system's fault tolerance requirements.

Please review the full system requirements.

2. Basic actions before installation

Using the Start context menu

1. Right-click on the Start icon in the lower-left corner of the screen.
2. Select “Windows PowerShell (Administrator)” from the context menu.

Using the Start menu

1. Left-click on the Start icon in the lower-left corner of the screen.
2. Type powershell
3. Open PowerShell as “Administrator” using the combination — Ctrl + Shift + Enter

danger

If you are using Windows Server 2016 — you need to enable the TLS protocol to download packages to the operating system:

PowerShell

[Net.ServicePointManager]::SecurityProtocol = [Net.SecurityProtocolType]::Tls12

Create a temporary directory for downloading packages and archives:

PowerShell

New-Item -Path "C:\Windows\Temp\passwork_install" -ItemType Directory

Determine the names of user groups using SID:

PowerShell

$userGroupSid = "S-1-5-32-545"
$userSecurityIdentifier = New-Object System.Security.Principal.SecurityIdentifier($userGroupSid)
$userGroupName = $userSecurityIdentifier.Translate([System.Security.Principal.NTAccount]).Value
$userGroupName = $userGroupName.Split("\")[1]

$iis_iusrsGroupSid = "S-1-5-32-568"
$iis_iusrsSecurityIdentifier = New-Object System.Security.Principal.SecurityIdentifier($iis_iusrsGroupSid)
$iis_iusrsGroupName = $iis_iusrsSecurityIdentifier.Translate([System.Security.Principal.NTAccount]).Value
$iis_iusrsGroupName = $iis_iusrsGroupName.Split("\")[1]

Install the IIS role with the module:

PowerShell

Install-WindowsFeature -Name Web-Server -IncludeManagementTools
Install-WindowsFeature -Name Web-CGI -IncludeManagementTools

3. Installing PHP

Download the PHP archive:

PowerShell

(New-Object System.Net.WebClient).DownloadFile("https://repos.passwork.pro/repository/windows_packages/php_build/83/php_latest.zip", "C:\Windows\Temp\passwork_install\php_latest.zip")

info

In case of errors download the archive manually

Extract the contents to Program Files:

PowerShell

Expand-Archive `
    -Path "$env:SystemDrive\Windows\Temp\passwork_install\php_latest.zip" `
    -DestinationPath "$env:ProgramFiles\"

Add PHP utilities to the PATH environment variable:

PowerShell

[System.Environment]::SetEnvironmentVariable("PATH", [System.Environment]::GetEnvironmentVariable("PATH", [System.EnvironmentVariableTarget]::Machine) + ";C:\Program Files\php8.3", [System.EnvironmentVariableTarget]::Machine)
$env:Path = [System.Environment]::GetEnvironmentVariable("PATH", [System.EnvironmentVariableTarget]::Machine)

Set permissions for the Users group on the PHP directory:

PowerShell

Invoke-Expression "icacls '$env:ProgramFiles\php8.3' /grant '${userGroupName}:(OI)(CI)`M'"

4. Installing the MongoDB database

Download the MongoDB installer:

PowerShell

(New-Object System.Net.WebClient).DownloadFile("https://repos.passwork.pro/repository/windows_packages/mongodb_database_latest.msi", "C:\Windows\Temp\passwork_install\mongodb_database_latest.msi")

info

In case of errors download the installer manually

Install MongoDB with default settings:

PowerShell

Start-Process -FilePath "msiexec.exe" -ArgumentList "/l*v", "C:\Windows\Temp\mdbinstall.log", "/qb", "/i", "C:\Windows\Temp\passwork_install\mongodb_database_latest.msi", "SHOULD_INSTALL_COMPASS=0", "ADDLOCAL=Router,ServerService" -Wait

info

To install MongoDB on another drive, add "INSTALLLOCATION=A:\MongoDB"

Create a directory for MongoDB administration utilities:

PowerShell

New-Item -ItemType Directory -Force -Path "$env:ProgramFiles\MongoDB\Tools\"

Download the administration utilities:

PowerShell

(New-Object System.Net.WebClient).DownloadFile("https://repos.passwork.pro/repository/windows_packages/database_tools_latest.zip", "C:\Windows\Temp\passwork_install\database_tools_latest.zip")

info

In case of errors download the utilities manually

Extract the contents:

PowerShell

Expand-Archive `
    -Path "$env:SystemDrive\Windows\Temp\passwork_install\database_tools_latest.zip" `
    -DestinationPath "$env:ProgramFiles\MongoDB\Tools\"

Add administration utilities to the PATH environment variable:

PowerShell

[System.Environment]::SetEnvironmentVariable("PATH", [System.Environment]::GetEnvironmentVariable("PATH", [System.EnvironmentVariableTarget]::Machine) + ";C:\Program Files\MongoDB\Tools", [System.EnvironmentVariableTarget]::Machine)
$env:Path = [System.Environment]::GetEnvironmentVariable("PATH", [System.EnvironmentVariableTarget]::Machine)

5. Installing modules for IIS

Download the archive with modules:

PowerShell

(New-Object System.Net.WebClient).DownloadFile("https://repos.passwork.pro/repository/windows_packages/iis_package_latest.zip", "C:\Windows\Temp\passwork_install\iis_package_latest.zip")

info

In case of errors download the modules manually

Extract the IIS modules:

PowerShell

Expand-Archive `
    -Path "$env:SystemDrive\Windows\Temp\passwork_install\iis_package_latest.zip" `
    -DestinationPath "$env:SystemDrive\Windows\Temp\passwork_install\"

Install Visual C++:

PowerShell

Start-Process `
    -FilePath "$env:SystemDrive\Windows\Temp\passwork_install\VC_redist.x64.exe" `
    -ArgumentList "/q" -Wait -ErrorAction Stop

Install PHP Manager:

PowerShell

Start-Process -FilePath "msiexec.exe" `
    -ArgumentList "/i $env:SystemDrive\Windows\Temp\passwork_install\PHPManagerForIIS_x64.msi /quiet /norestart" `
    -Wait -ErrorAction Stop

Install URL Rewrite:

PowerShell

Start-Process -FilePath "msiexec.exe" `
    -ArgumentList "/i $env:SystemDrive\Windows\Temp\passwork_install\rewrite_amd64_en-US.msi /quiet /norestart" `
    -Wait -ErrorAction Stop

6. Obtaining Passwork

Create a directory for Passwork:

PowerShell

New-Item -ItemType Directory -Force -Path "C:\inetpub\wwwroot\passwork"

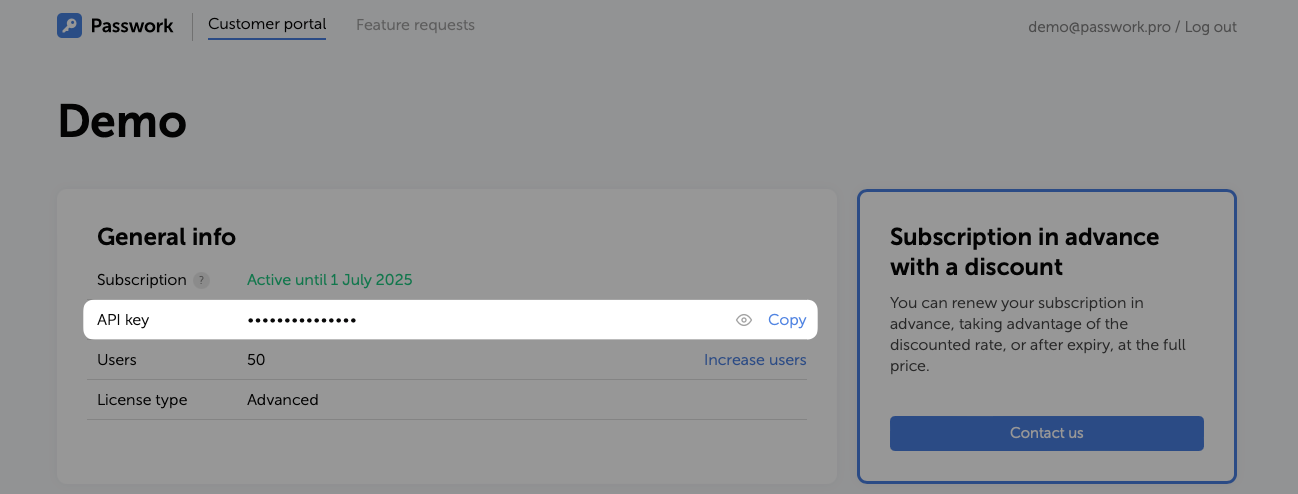

Go to the Passwork Customer Portal and copy the API key:

Create the API_KEY variable:

PowerShell

$API_KEY = "your_api_key"

Check the available Passwork version from the client portal:

PowerShell

Invoke-RestMethod -Uri "https://portal.passwork.pro/api/version?apikey=$API_KEY" -Method Get

Correct output

PowerShell

response
--------
@{last-available-version=xxxxxxxx}

Download Passwork using the request:

PowerShell

(New-Object System.Net.WebClient).DownloadFile("https://portal.passwork.pro/api/download?apikey=$API_KEY", "C:\Windows\Temp\passwork_install\passwork.zip")

Clear the API_KEY variable:

PowerShell

Remove-Variable API_KEY

Extract the downloaded archive:

PowerShell

Expand-Archive `
    -Path "$env:SystemDrive\Windows\Temp\passwork_install\passwork.zip" `
    -DestinationPath "$env:SystemDrive\inetpub\wwwroot\passwork\"

Download and place the web.config file into C:\inetpub\wwwroot\passwork\public\ for redirect rules:

web.config

Set permissions for the physical location of Passwork:

PowerShell

Invoke-Expression "icacls '$env:SystemDrive\inetpub\wwwroot' /grant '${userGroupName}:(OI)(CI)`M'"
Invoke-Expression "icacls '$env:SystemDrive\inetpub\wwwroot' /grant '${$iis_iusrsGroupName}:(OI)(CI)`M'"
Invoke-Expression "icacls '$env:SystemDrive\inetpub\wwwroot' /grant 'IUSR:(OI)(CI)`M'"

7. Creating a website with PHP connection

danger

Important: to ensure correct operation of Passwork, you must use the HTTPS protocol.

Load modules in PowerShell for IIS management:

PowerShell

Import-Module IISAdministration
Import-Module WebAdministration
Add-PsSnapin PHPManagerSnapin

Unlock the handlers configuration in IIS:

PowerShell

Invoke-Expression "$env:windir\system32\inetsrv\appcmd.exe unlock config -section:system.webServer/handlers"

Create a website named Passwork Web Site:

PowerShell

New-WebSite -Name "Passwork Web Site" -Port "5353" -PhysicalPath "C:\inetpub\wwwroot\passwork\public" -Force

Register the PHP version for the website:

PowerShell

New-PHPVersion -ScriptProcessor "$env:ProgramFiles\php8.3\php-cgi.exe" -SiteName "Passwork Web Site" -VirtualPath "/"

Activate drivers and extensions for the website:

PowerShell

$extensions = @(
    "php_curl.dll",
    "php_gd.dll",
    "php_gettext.dll",
    "php_intl.dll",
    "php_ldap.dll",
    "php_mbstring.dll",
    "php_mongodb.dll",
    "php_mysqli.dll",
    "php_openssl.dll",
    "php_pdo_pgsql.dll",
    "php_pdo_sqlite.dll",
    "php_pgsql.dll",
    "php_soap.dll",
    "php_zip.dll",
    "php_fileinfo.dll"
)

foreach ($extension in $extensions) {
    Write-Host "PHP extension activated: $extension"
    Set-PHPExtension -Name $extension -Status Enabled -SiteName "Passwork Web Site" -VirtualPath "/"
}

Get the PHP version number into a variable:

PowerShell

$phpVersion = (Get-PHPConfiguration -SiteName "Passwork Web Site" -VirtualPath "/").version

Update the list of HTTP methods allowed for the PHP handler:

PowerShell

Set-WebConfigurationProperty -PSPath "IIS:\Sites\Passwork Web Site" -Filter "system.webServer/handlers/add[@name='php-$phpVersion']" -Name "verb" -Value "GET,HEAD,POST,PUT,DELETE,PATCH"

8. Configuring the web server for HTTPS protocol

info

To ensure correct operation, you must use the HTTPS protocol. Using HTTP will cause errors.

8.1 Generating a self-signed SSL certificate

Create a self-signed SSL certificate with the server name value:

PowerShell

$dnsName = "$env:COMPUTERNAME"
$newCert = New-SelfSignedCertificate -DnsName $dnsName -CertStoreLocation cert:\LocalMachine\My

8.2 Creating IIS binding for HTTPS access

Create an HTTPS binding on the Passwork website:

PowerShell

New-WebBinding -Name "Passwork Web Site" -IPAddress "*" -Port "443" -Protocol "https"

Get the current binding of the Passwork website:

PowerShell

$binding = Get-WebBinding -Name "Passwork Web Site" -Protocol "https"

Bind the previously created self-signed SSL certificate to the website's HTTPS protocol:

PowerShell

$binding.AddSslCertificate($newCert.GetCertHashString(), "my")

Restart the IIS web server:

PowerShell

Restart-Service -Name "W3SVC"

7. Passing parameter checklist

When connecting to Passwork for the first time, you need to go through the parameter checklist, during which the following will be performed:

• Checking necessary parameters
• Connecting to the MongoDB database

danger

Change the MongoDB connection to the address — mongodb://localhost:27017

• Randomly generated key for encrypting data in MongoDB
• License key verification

After passing the checklist, you will be prompted to create the first user in Passwork, where you need to specify the login, password, and email address for sending notifications.

info

Additional component parameters, security settings, and Passwork system configuration are available in the advanced settings section.

10. Configuring background tasks

Background tasks are tasks that run on a scheduler in the background. Learn how to configure background tasks.

danger

Background tasks are mandatory for the correct operation of some Passwork functionality, such as:

• LDAP operations;
• Sending email notifications;
• Downloading favicons;
• Cleaning the session collection in the Passwork database.
